Wanted: XL 3920 Service manual
Posted: Thu Apr 15, 2021 12:12 pm
by PPCPete
We need a XL 3920 Service Manual !
Can anyone help? Mail to
[email protected]
Thanks!
How do you get into diagnostics on this unit??
Pete
Re: Wanted: XL 3920 Service manual
Posted: Thu May 27, 2021 5:20 pm
by MrXL
Normally you would get it on the HP MyKnowledge site once you're logged in, but i'm hearing a lot of people that were trained still don't have access. If you're trained, HP support can send you a copy directly.
Re: Wanted: XL 3920 Service manual
Posted: Thu May 27, 2021 6:10 pm
by MrXL
Oh and to get into the diag boot, it's just like the DJ XL 3600:
1. Turn it on and wait for the HP logo to come up.
2. When a gray circle appears below the logo, press it and it should turn into 4 smaller circles.
3. It is now waiting for you to tap areas of the screen in a certain order.

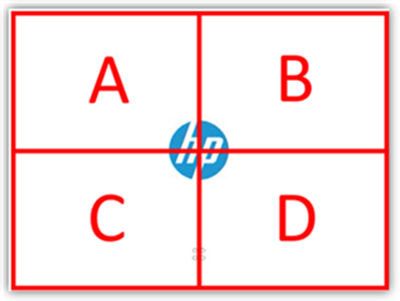

Top left quarter = A
Top right quarter= B
Bottom left quarter = C
Bottom Right quarter = D
It's broken up Like this:
- abcd.png (41.64 KiB) Viewed 15949 times
Tapping
ABC will get you to customer Diag mode (less options).
Tapping
CBA will get you to Technician Diag mode.
